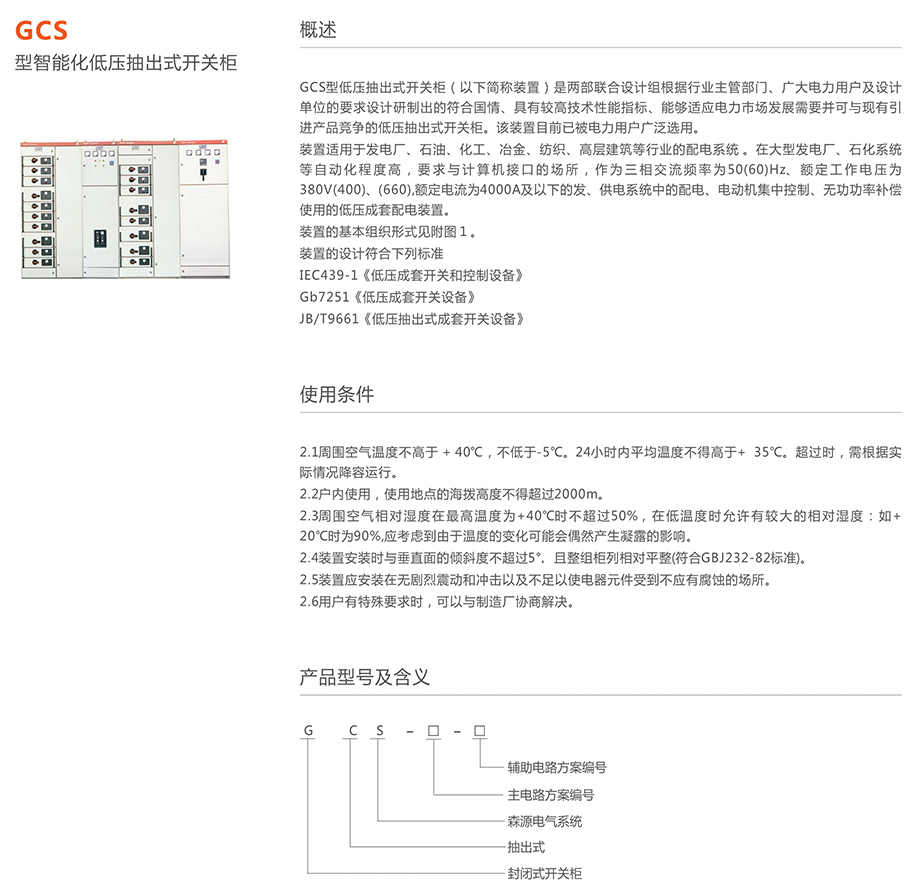

GCS Intelligent Low-Voltage Drawer-Type Switchgear
Model GCS
The GCS low-voltage drawer-type switchgear is designed and developed by a joint design team of two ministries, based on requirements from industry authorities, power users, and design institutes. It meets national conditions, offers high technical performance, adapts to power market development, and competes with existing imported products. This unit is widely selected by power users.
Key Features
- Suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings, and other industries
- High automation level, requires computer interface
- Three-phase AC frequency 50(60)Hz
- Rated operating voltage 380V(400), (660)V
- Rated current up to 4000A
- Used for power distribution, centralized motor control, and reactive power compensation in power generation and supply systems
Applications
Large power plantsPetrochemical systemsPower distribution systemsCentralized motor controlReactive power compensation
Technical Specifications
| Rated Voltage | AC 400V (up to 660V) |
|---|---|
| Rated Current | ≤4000A |
| Frequency | 50(60)Hz |
| Short-Circuit Withstand | Icw 30 / 50 / 80 kA (1s) |
| IP Rating | IP30 / IP40 |
| Standard | IEC439-1《低压成套开关和控制设备》;Gb7251《低压成套开关设备》;JB/T9661《低压抽出式成套开关设备》 |
| Enclosure | 封闭式开关柜 |
| Dimensions | W 400/600/800/1000 × D 600/800/1000 × H 2200 mm |
Specifications are customizable to project requirements. Contact us for tailored configurations.
