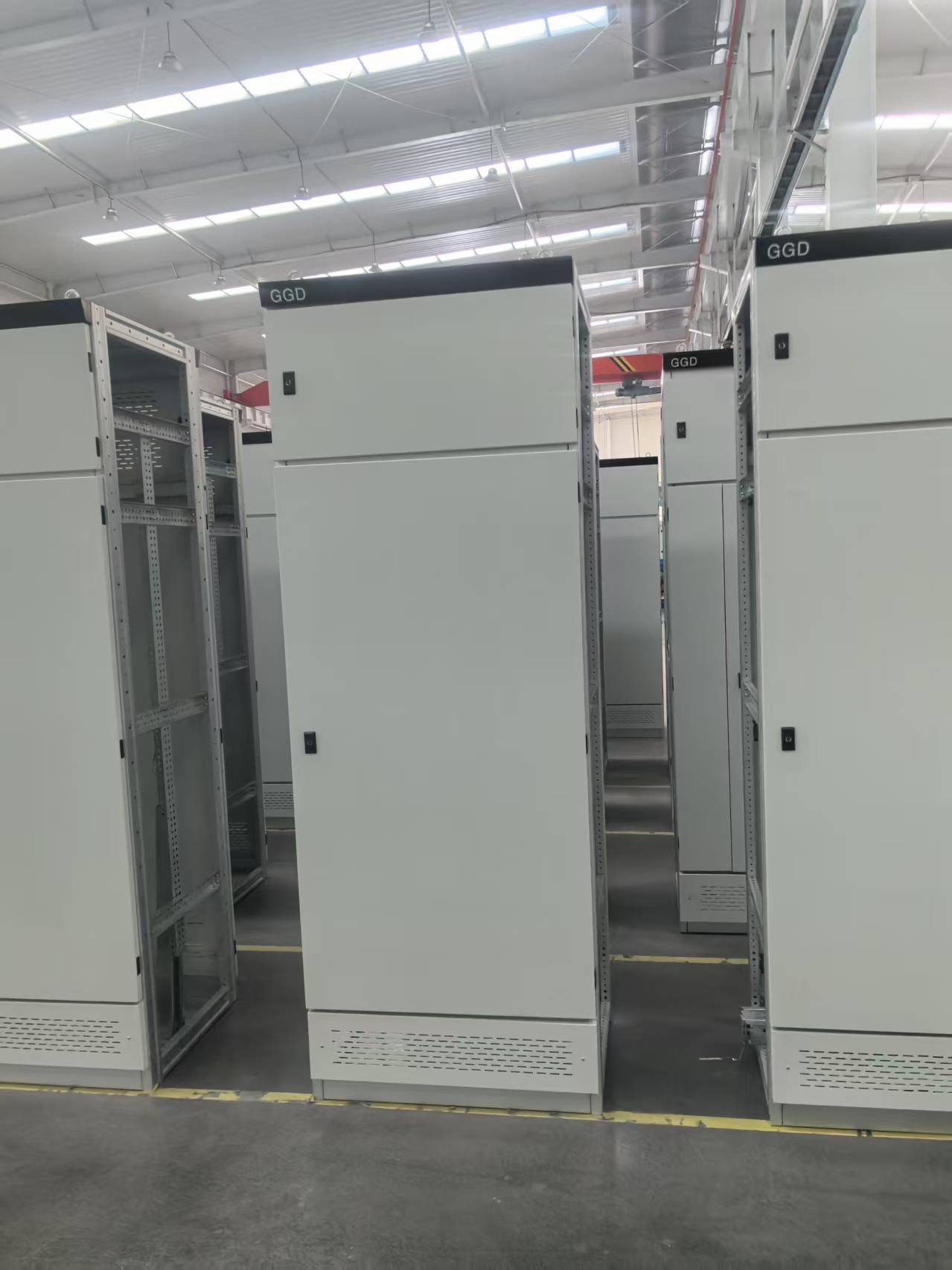

GGD Low-Voltage Switchgear Cabinet
Model GGD
Fixed-type low-voltage switchgear cabinet for indoor use, designed for power distribution and motor control in industrial and civil applications.
Key Features
- Fixed installation structure
- Modular design with standardized components
- Front-accessible door with lock
- Ventilated bottom panel for heat dissipation
- Steel enclosure with powder-coated finish
Applications
Power distribution in substationsIndustrial plant main/feeder distributionBuilding electrical roomsMotor control centers (MCC) when configured accordingly
Technical Specifications
| Rated Voltage | AC 380V / 400V |
|---|---|
| Rated Current | 630A – 3150A |
| Frequency | 50Hz |
| Short-Circuit Withstand | Icw = 15–50 kA (1s), Icc = 30–80 kA (peak) |
| IP Rating | IP30 (standard), IP40 optional |
| Standard | GB 7251.1, GB 7251.12, IEC 61439-1/-2 |
| Enclosure | Cold-rolled steel, 2.0 mm thickness, RAL 7035 grey |
| Dimensions | Typical: W600/800/1000 × D600/800/1000 × H2000 mm |
Specifications are customizable to project requirements. Contact us for tailored configurations.
